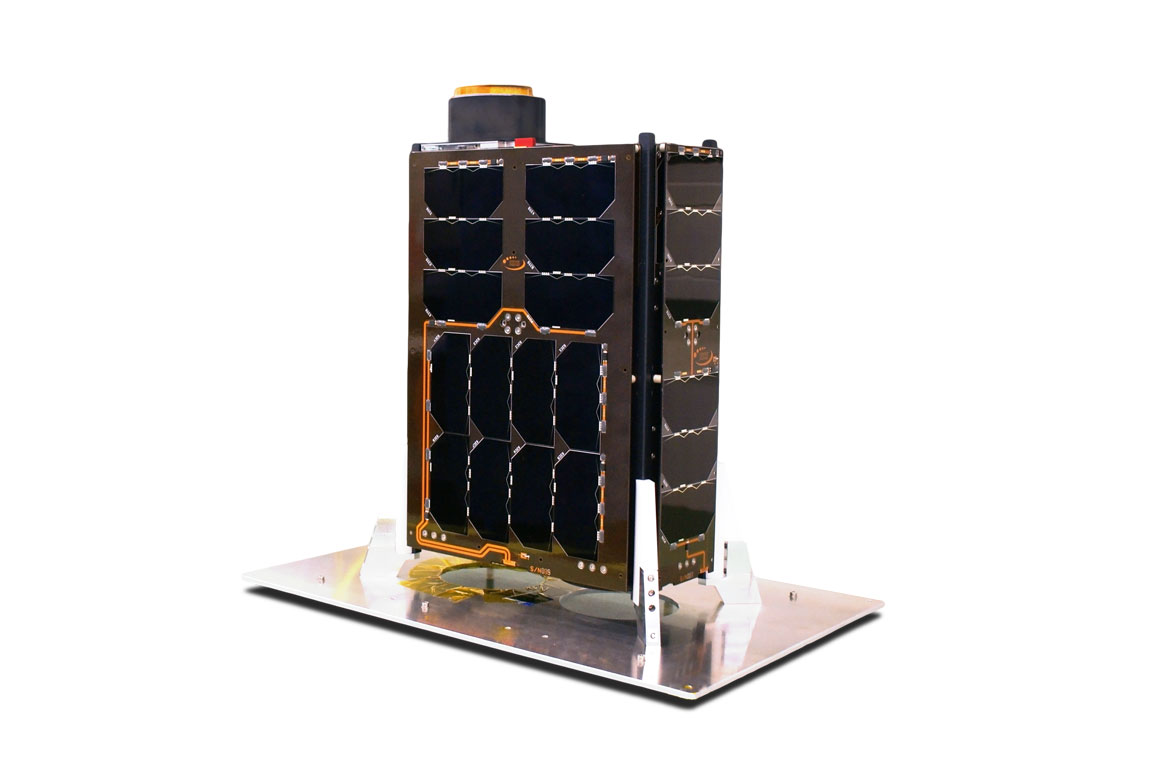

6U CubeSat Bus

Price on request

The 6-Unit CubeSat Bus builds upon the engineering expertise and subsystem heritage developed at ISIS over a decade. This form factor provides extra payload space complemented by state-of-the-art communications and attitude control systems.

The 6-Unit platform enables ambitious military, commercial and scientific missions in domains such as Signals Intelligence (SIGINT), Geospatial Intelligence (GEOINT), Internet-of-Things services (IoT), air traffic monitoring (ADS-B), Earth Observation (EO) and Space Science. The ideal solution for tactical, communications and distributed science constellations, the 6-Unit answers demand for a reliable, high capability and full-featured CubeSat platform.

SKU: 101506 Category:
Flight Heritage since 2018


6-Unit CubeSat Bus
Payload Volume 2.5-3U
Payload Average Power Up to 20W
Peak Power Generation Up to 60W
Pointing Accuracy Up to 0.1° (Advanced ADCS)
TT&C (VHF/UHF) 9.6kbps uplink and up to 0.5Mbps downlink
Payload Data Downlink 4.3 Mbps (S-Band)
Storage Up to 64GB
Propulsion Up to 2000Ns (Optional)
