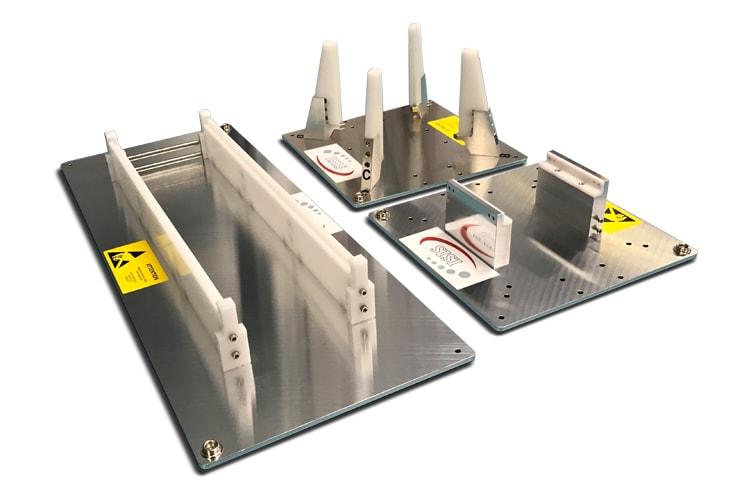

Horizontal Jig for 2U/3U CubeSats


  • Provides an ‘extra hand’ during the integration of CubeSats
  • Reduction of damage to satellite system during handling
  • Compliant with latest CubeSat standards
  • The jigs are equipped with rubber stand-off for electrical isolation
  • 2 x mounting interface for ESD cable
  • Segmented rails for quick adaptability between different CubeSat sizes
  • Used for mounting ISIS CubeSat Structure stacks to the structure side-frames
  • POM mounting rails & clamps to prevent damage to the structure
  • ESD protection of structure through additional ESD cable


Availability: 2-4 weeks

  • Description
  • Product Properties

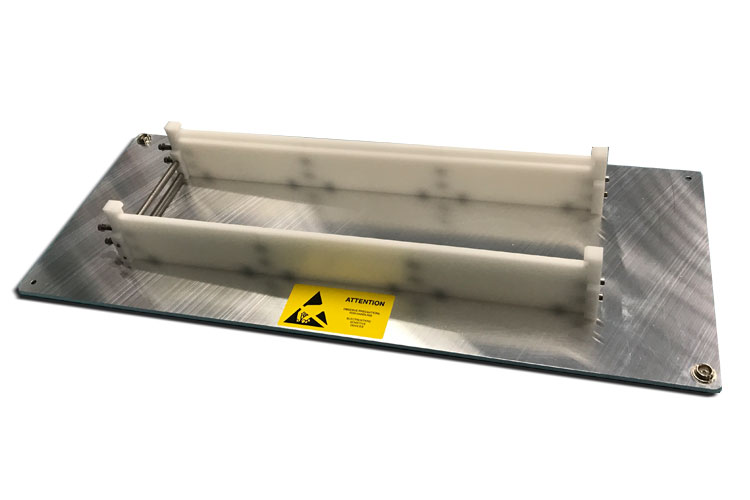

The horizontal 2U/3U integration jig allows you to integrate 1-Unit stacks into the 2U or 3U primary structure of the CubeSat. The increased height above the working surface in horizontal position makes the integration jig suitable for functional performance tests with deployable arrays and antennas.

Product Properties

  • Length: 500 mm
  • Width: 200 mm
  • Height (without S/C): 62
  • Clearance between baseplate & S/C: 20 mm
  • Material: Aluminum, POM (Polyoxymethylene)
